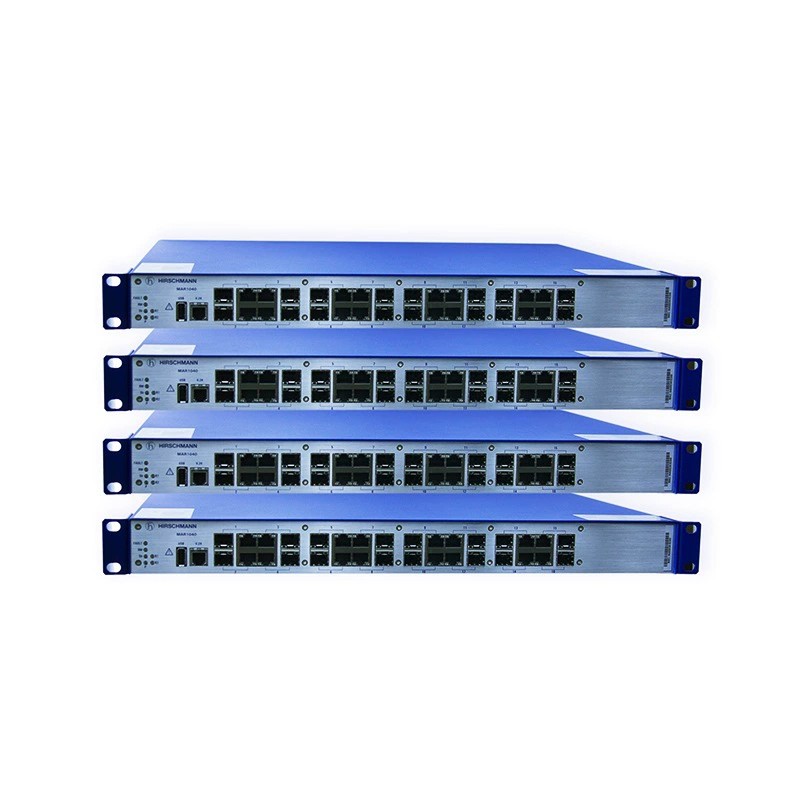

Hirschmann MACH4002 48+4G-L3EHC Core Gigabit Switch

Mach4002 48+4g-l3ehc is a modular, manageable industrial backbone switch with Layer 3 switching and enhanced software for the Mach4000

product description

Port type and quantity

*Supports up to 48 Fast Ethernet ports and 4 Gigabit Ethernet ports, with 32 Fast Ethernet ports implemented through media module expansion

Among the preset ports, 4 are gigabit twisted pair (10/100/1000Mbit/s) and SFP fiber (10/100Mbit/s) interchangeable combo ports, of which 16 are fast Ethernet ports

Power requirements

working voltage

Power consumption btu (it) h

Power module m4-s-xx or m4 power (requires separate order) 70 w (without dielectric module)

environmental condition

operation temperature

Storage/transportation temperature

Relative humidity (without condensation)

Mean time between failures (MTBF)

0 °c ~ +60 °c

-25 °c~ +70 °c

10% to ~%

28.6 years;  mil-hdbk 217f: gb 25 °c

Institutional structure

Dimensions (w x h x d)

install

weight

Protection level

480 mm x 88 mm x 435 mm

19 "rack installation

7.5 kg

ip 20
